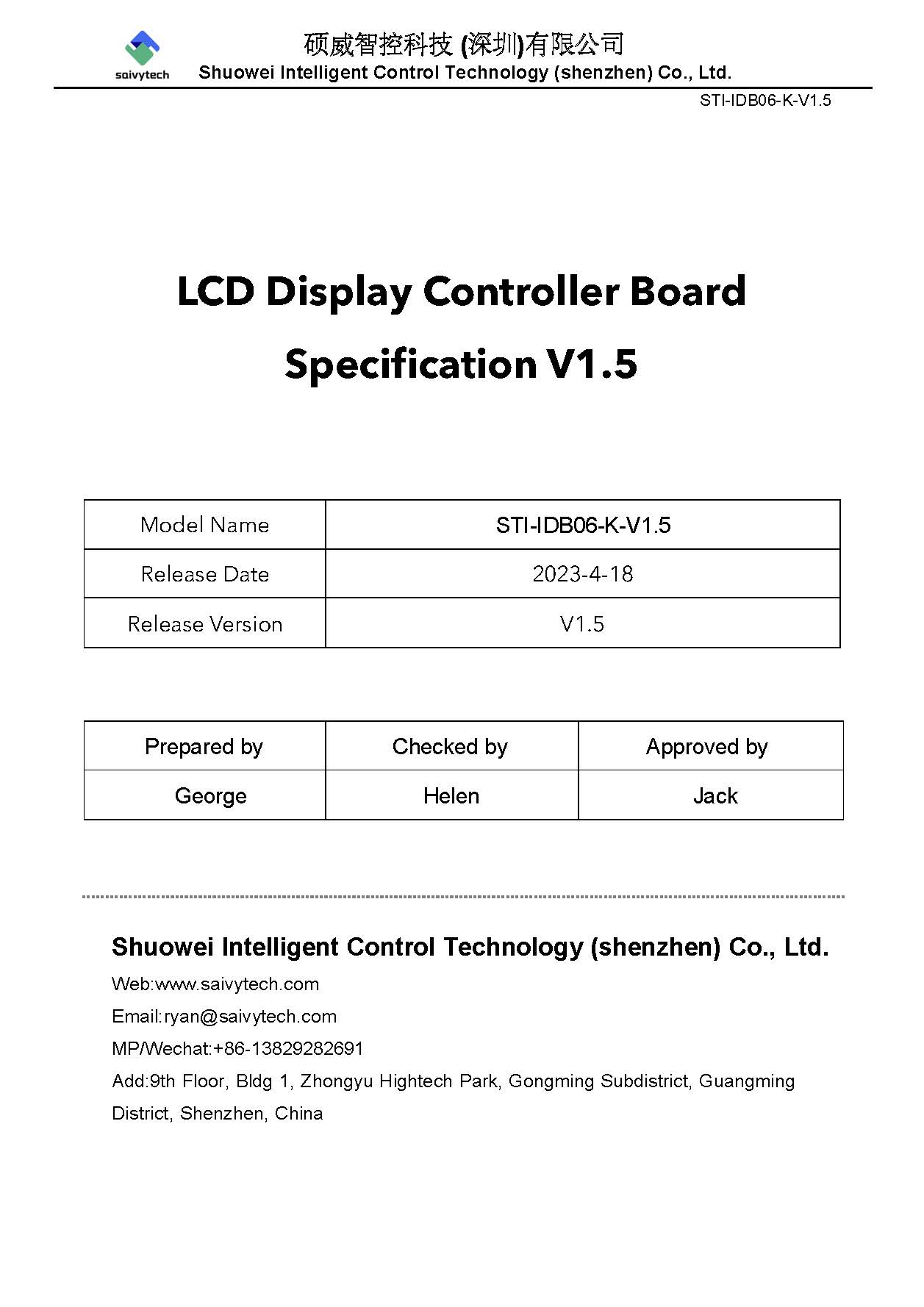

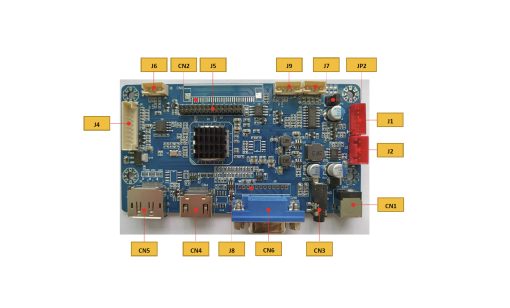

STI-IDB06-K-V1.5

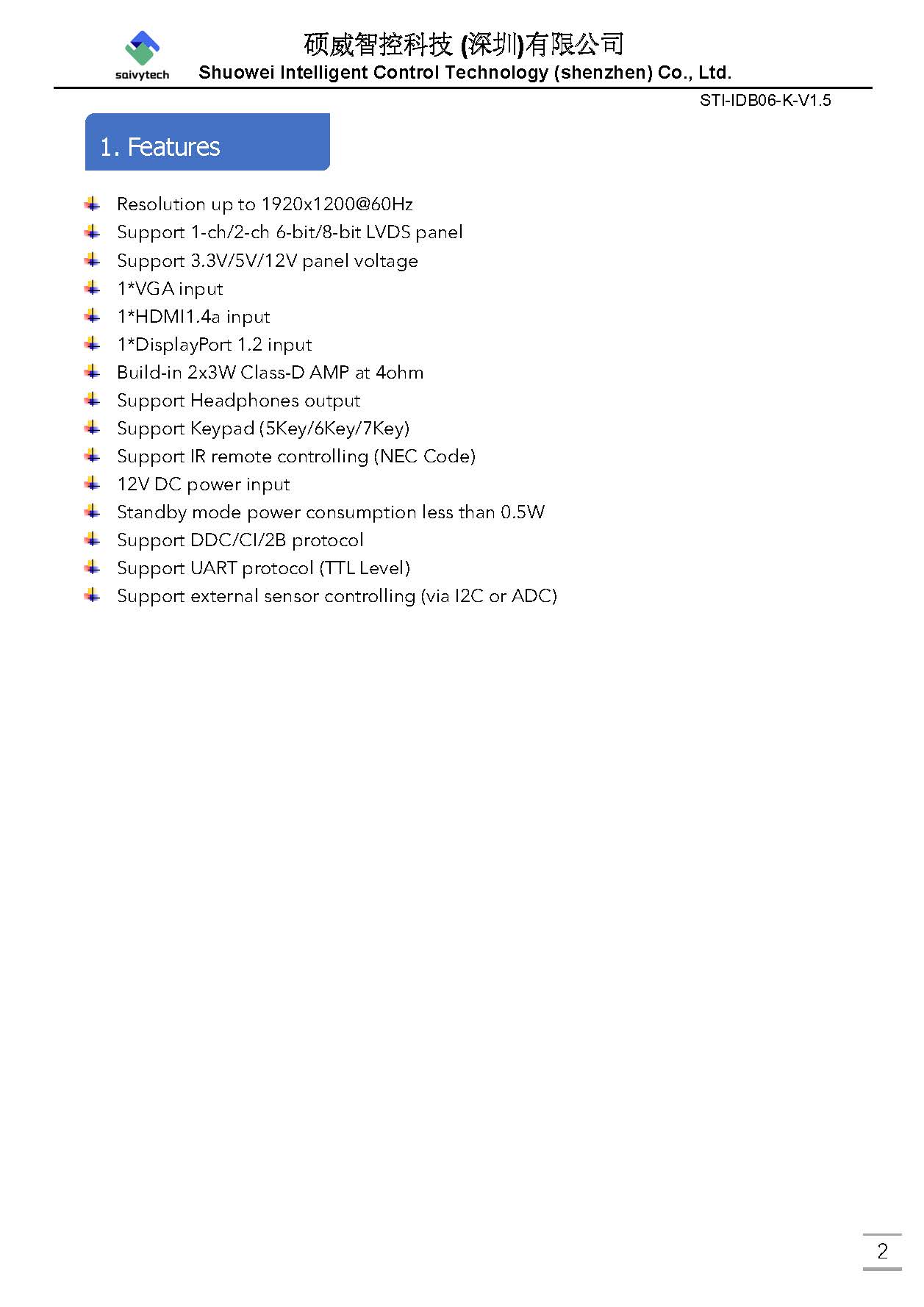

Product Features

• Resolution up to 1920×1200@60Hz
• Support 1-ch/2-ch 6-bit/8-bit LVDS panel
• Support 3.3V/5V/12V panel voltage

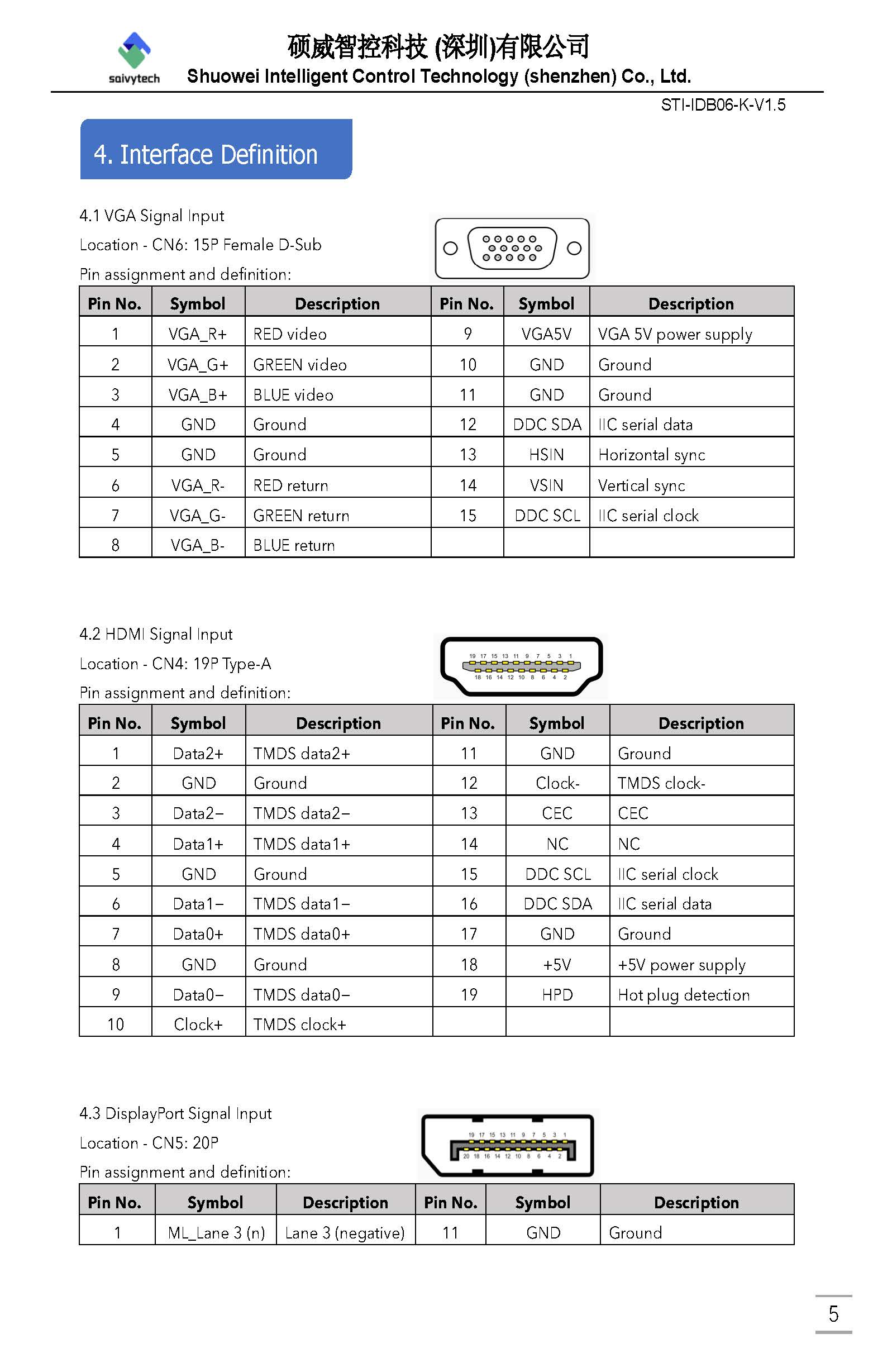

• 1*VGA input
• 1*HDMI1.4a input
• 1*DisplayPort 1.2 input
• Build-in 2x3W Class-D AMP at 4ohm
• Support Headphones output
• Support Keypad (5Key/6Key/7Key)
• Support IR remote controlling (NEC Code)
• 12V DC power input
• Standby mode power consumption less than 0.5W Support DDC/CI/2B protocol
• Support UART protocol (TTL Level)
• Support external sensor controlling (via I2C or ADC)
