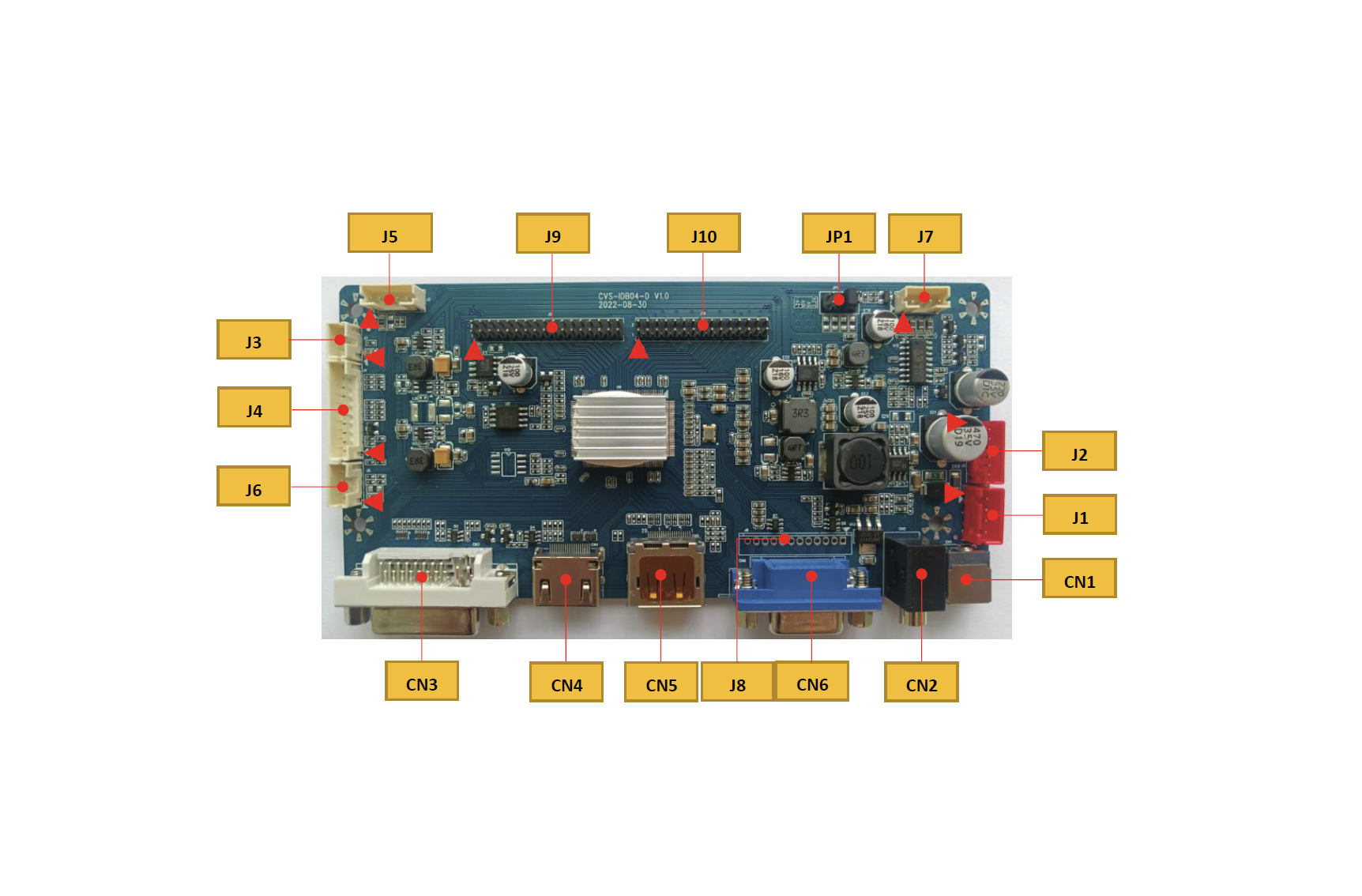

STI-IDB04-D V1.0

Product Features

• Support 1-Port/2-Port 6bit/8bit LVDS panel (Max. Resolution 1920×1200@60Hz) Support 4-Port 8bit LVDS panel (Max. Resolution 2560×1440@60Hz)
• Support 3.3V/5V/10V/12V panel voltage
• 1*VGA input
• 1*DVI input
• 1*HDMI1.4 input
• 1*DisplayPort 1.2 input
• Build-in 2x3W@4Ω Class-D AMP
• Support Audio input
• Support Keypad (5Key/6Key/7Key)
• Support IR Remote Controlling (NEC Code)
• 12V~24V DC power input
• Standby mode power consumption less than 0.5W
• Support DDC/CI/2B protocol
• Support UART protocol (TTL-Level)
• Support external sensor controlling (via I2C or GPIO)
