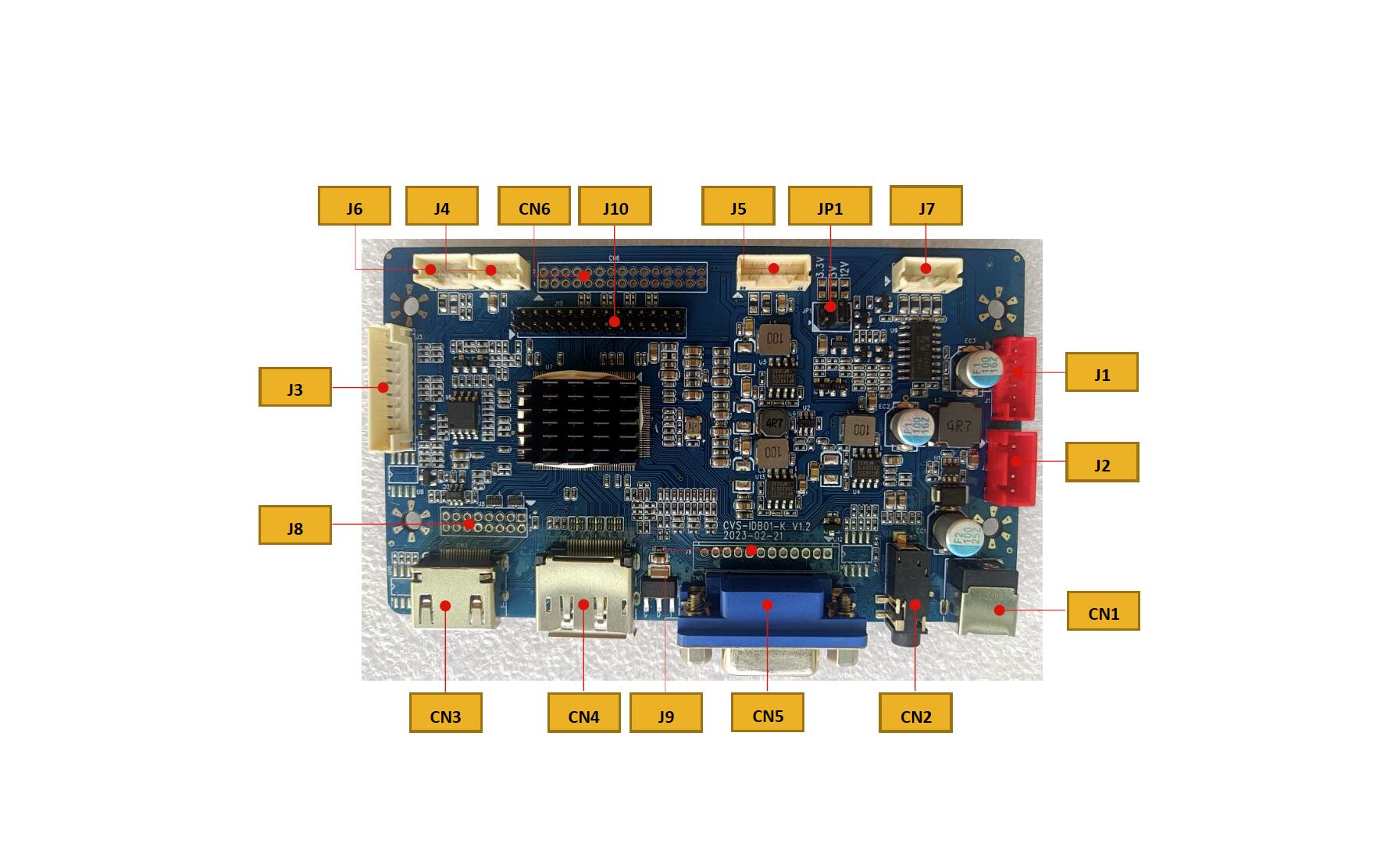

STI-IDB01-K V1.2

Product Features

• Resolution up to 1920×1200@60Hz (LVDS) / 2560×1440@60Hz (eDP) Support 1-ch/2-ch 6bit/8bit LVDS panel
• Support 1-lane/2-lane/4-lane eDP HBR panel
• Support 3.3V/5V/12V panel voltage
• 1*VGA input
• 1*HDMI 1.4 input
• 1*DisplayPort 1.2 input
• Build-in 2x3W@4Ω Class-D AMP
• Support Headphones output
• Support Keypad (5Key/6Key/7Key)
• Support IR Remote Controlling (NEC Code)
• 12V DC power input
• Standby mode power consumption less than 0.5W
• Support DDC/CI/2B protocol
• Support UART protocol (TTL-Level)
• Support external sensor controlling (via I2C or GPIO)
