Specification

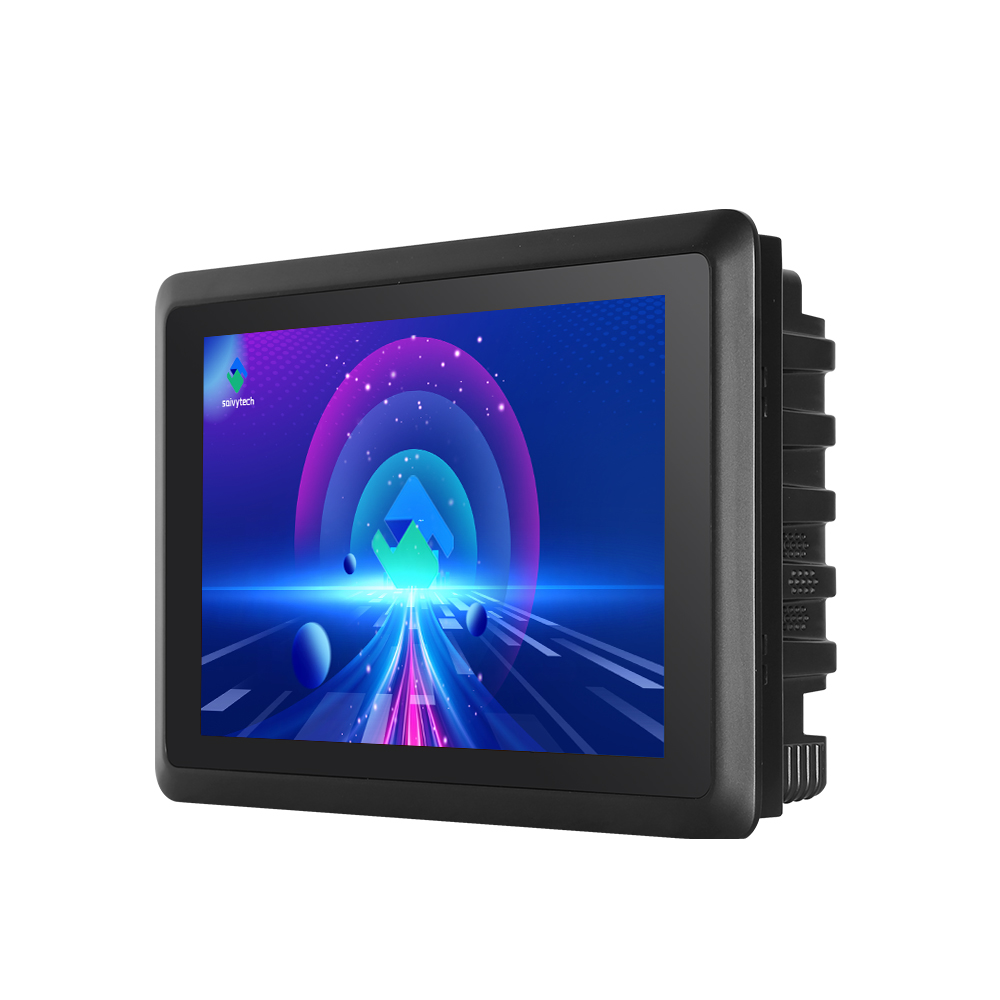

Model Name: STI-101CTPCW-08 J1900
- Intel Celeron Quad Core J1900 industrial grade motherboard；
- Supports Win7/8/10, Linux (32Bit, 64Bit);
- 4+64GB Standard configuration;
- Industrial grade LCD panel, perfect quality and wide viewing angles, 24/7 long time running;
- Durable mechanical design,Can be used in harsh environments;
- PCAP can meet Wet&Glove Touch function;
- The Optical Bonding function can be customized;
- Glass surface treatment AR/AF/AG optional, The surface hardness of glass can reach MoHs 7;
- Wide temperature design, durable design,High reliability test, stable quality;
- IP rating for water proof and dust proof;
- Increase LCM brightness to 1200 nits using an option enhancement(customized solution);
- Customization service available;
| Specifications | |||||||||
| LCD Panel | PC System | ||||||||
| IP rating | IP65 front/IP40 back | Motherboard type | industrial mainboard | ||||||
| Screen Size | 10.1″ | CPU | J1900,（i3/i5/i7 Optional） | ||||||
| Active Display Area(mm) | 217.6(W)×136.3(H) | Audio | Integrated Audio Chip | ||||||
| Pixel Pitch(mm) | 0.1695×0.1695 mm (H×V) | Memory | DDR3-4GB | ||||||
| Display Resolution(pixel) | 1280(RGB)×800, WXGA | Storage | SSD-64GB | ||||||
| Color Numbers | 16.7M | Network | 1000Mbits,WIFI,BT | ||||||
| Brightness | 400nits | OS | Win 7/8/10/11 support | ||||||
| Contrast Ratio | 1300:1 (Typ.) (TM) | ||||||||
| Response Time(Typ.Tr+Tf) | 25 (Typ.)(Tr+Td) | Power | |||||||
| Viewing Angles(CR=10) | 85/85/85/85 (Typ.) | Power Input | DC 12V | ||||||
| Backlight / Lifetime (hours) | LED / 50,000H | Working current | ＜3A | ||||||
| Power Consumption | ＜15W | ||||||||
| Touch Panel | |||||||||

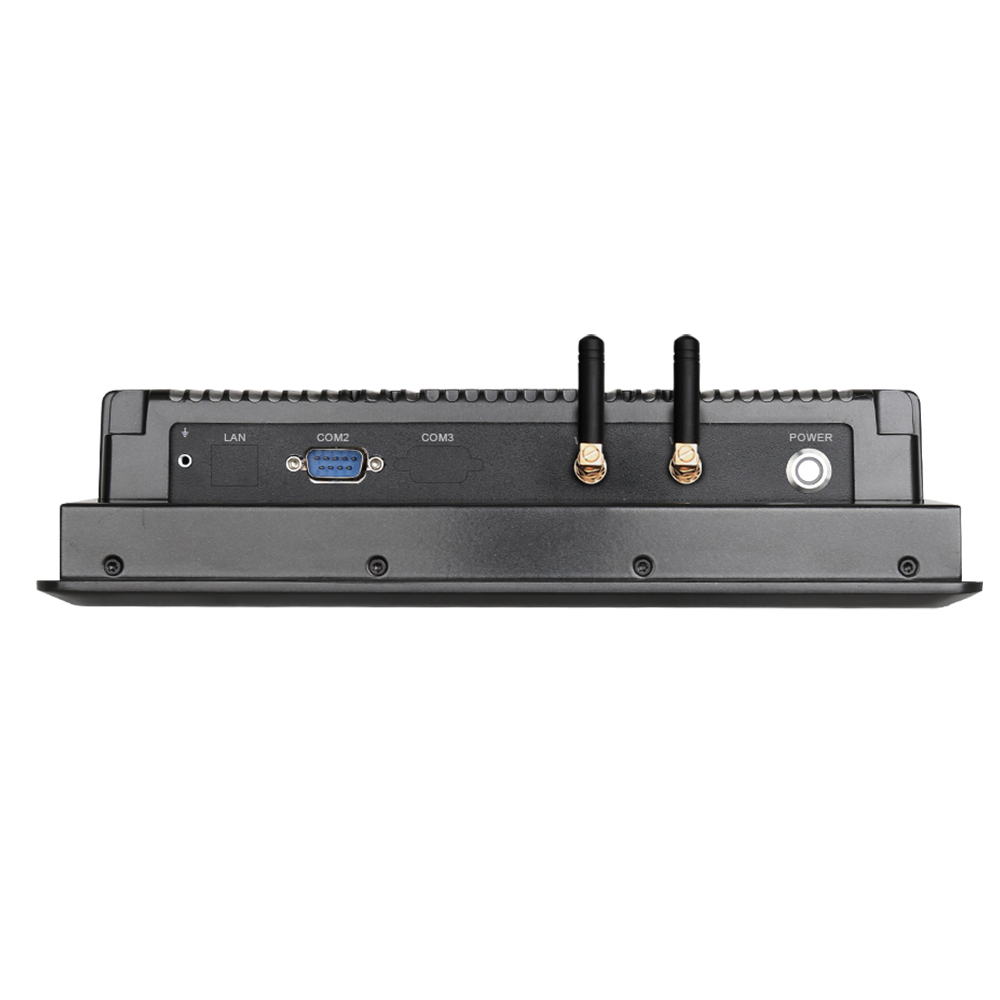

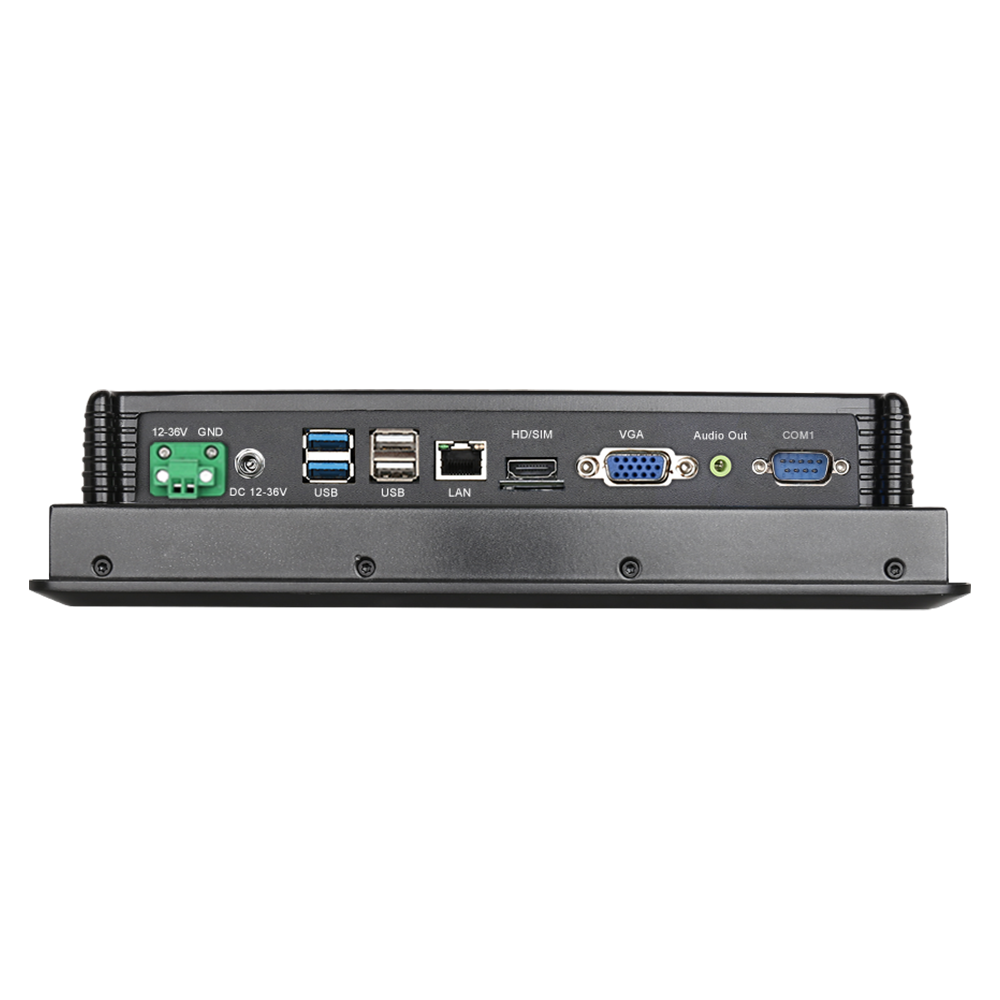

| Touch Screen | PCAP Touch(10 points) | External Connectors | |||||||
| Touch Controller | USB | 1x DC input Active switching | |||||||
| Touch Life (Contacts) | ≥5,000,000 | 2x Wifi antenna connector | |||||||
| Tempered glass | Yes(AG/AF/AR Optional） | 1x COM RS232 | |||||||
| 1x Audio I/O | |||||||||
| Operation /Mechanical | 1x HDMI | ||||||||
| Operating Temperature | -10~60℃ | 4x USB 2.0 | |||||||
| Storage Temperature | -20~70℃ | 1xVGA | |||||||
| Relative Humidity | 5~90(%RH) | 1x RJ45 | |||||||
| Housing Material | Aluminum | 1x SIM Slot | |||||||

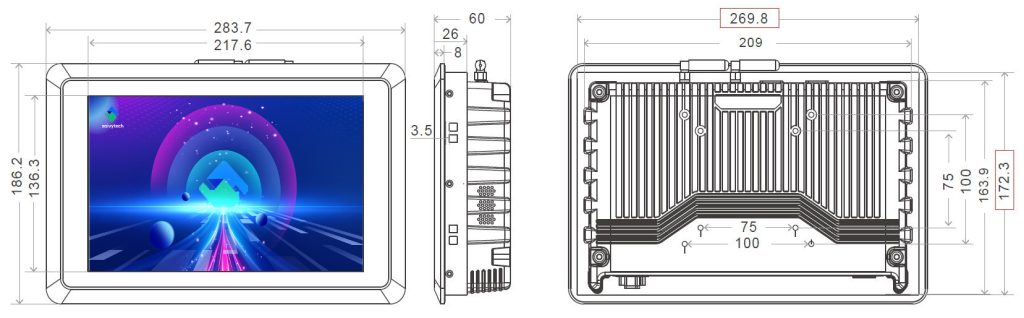

| Dimension(VxHxT)mm | 283.7*186.2*60 | ||||||||
| Vase/Panel Mounting | 75*75/100*100 | ||||||||
| Accessories in Package | |||||||||
| Warranty | Installation Hook | ||||||||
| 1 Years | Power Supply | ||||||||
